DIGITAL CAPTURE
3D scanning
An accurate digital model of the car lets us start designing a component while keeping the body geometry intact.
REVENTON INDUSTRIES / TECHNOLOGY
HOWIT IS MADE.
From the digital model and the mould, through Prepreg carbon fibre, to the final finish. Every stage serves precision, durability and surface quality.
MATERIALCARBON
TECHNOLOGYPREPREG
FINISHUV GLOSS
01 / QUALITYQuality starts
with the material.
with the material.
Carbon fibre is
the base of every part.
Reventon uses high quality carbon fibre and Prepreg composite technology to get low weight, high durability, an accurate reproduction of the shape and a controlled fibre layout.
PRODUCTION PROCESS / 05 STAGESFrom the car
From the car
to finished carbon.
The design and production process is shown as one continuous sequence, where each stage prepares the part for the next.
01 / 053D / DIGITAL CAPTURE
3DSCAN
DIGITAL / PRECISION
3D SCANNING.
An exact capture of the car body creates the digital base for designing the moulds and the components.
TOOLING
Making moulds
The mould has to reproduce the designed geometry exactly. This stage decides the surface quality and the fit of the component.

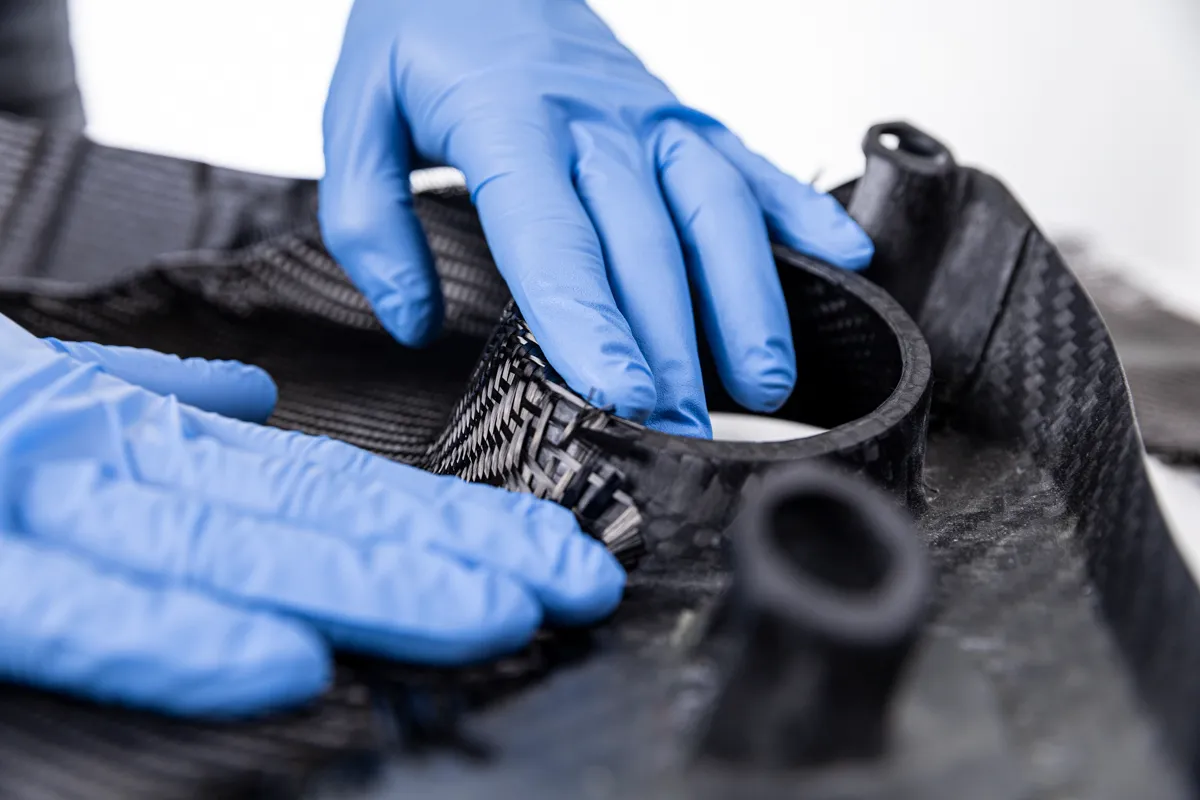

CARBON PREPREG
Laying the fibre
Prepreg fabric already carries the epoxy resin system and hardener. That lets us control the resin content and place the fibres precisely.
COMPOSITE CURE
Curing
Prepreg technology uses a controlled curing process, which is what gives the composite its mechanical properties and stability.
FINAL FINISH
UV coat
The final finish uses NOVOL Spectral paints. The clear coat protects the surface and gives it the characteristic high gloss.
PREPREG TECHNOLOGYThe resin is already
The resin is already
in the fibre.
Prepreg is a reinforcing fabric pre-impregnated with an epoxy resin system that already contains the right hardener. That lets the material be laid into the mould without the extra resin typical of wet lamination.
RESIN SYSTEMEPOXYpre-impregnated
LAYUPDRY FORMno extra resin
RESULTCONTROLlayout and accuracy
FIBER ALIGNMENTPrecise fibre alignment.
The technology keeps control over the fabric layout and the geometry of the finished part.
STREET / TRACKDurability and low weight.

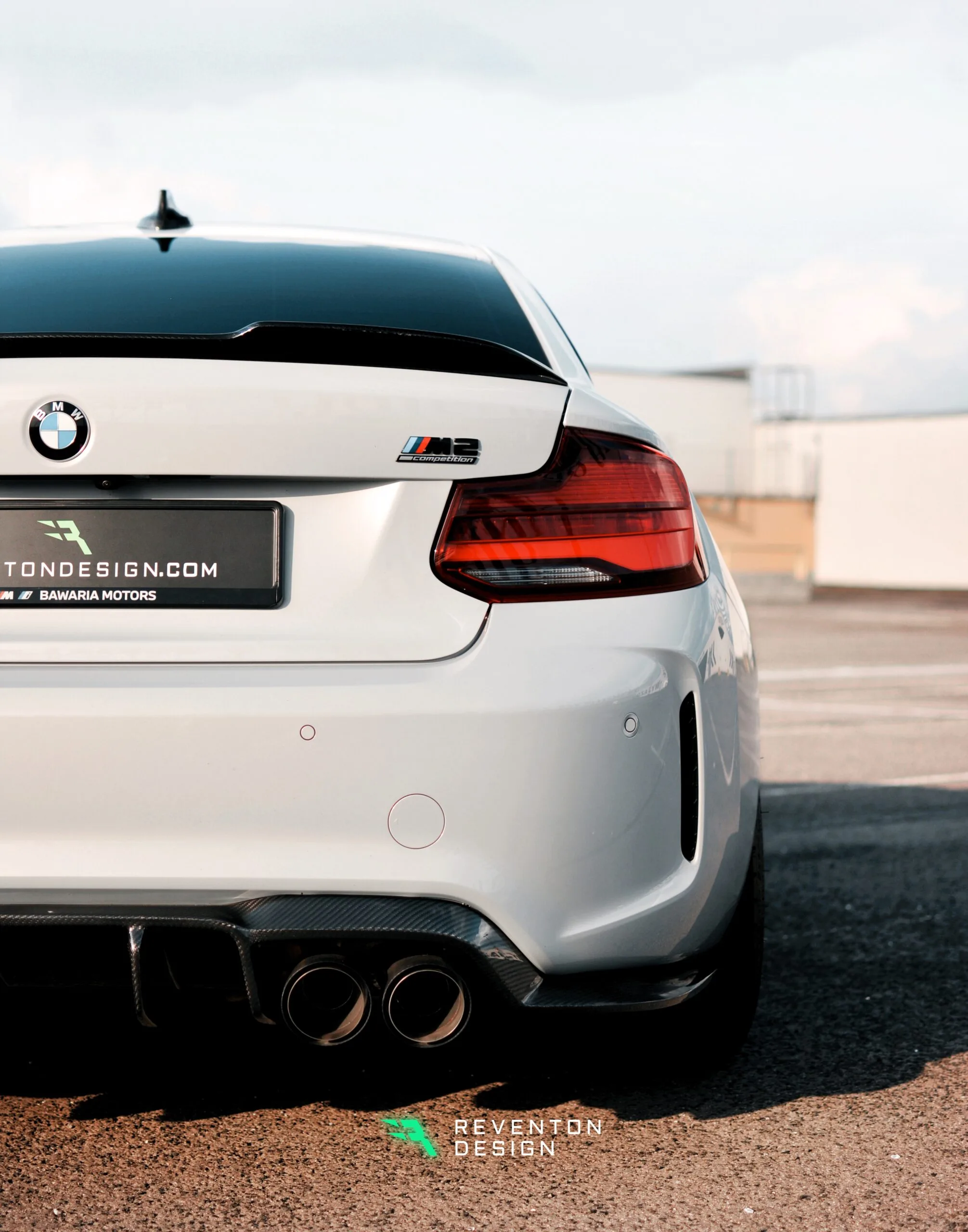

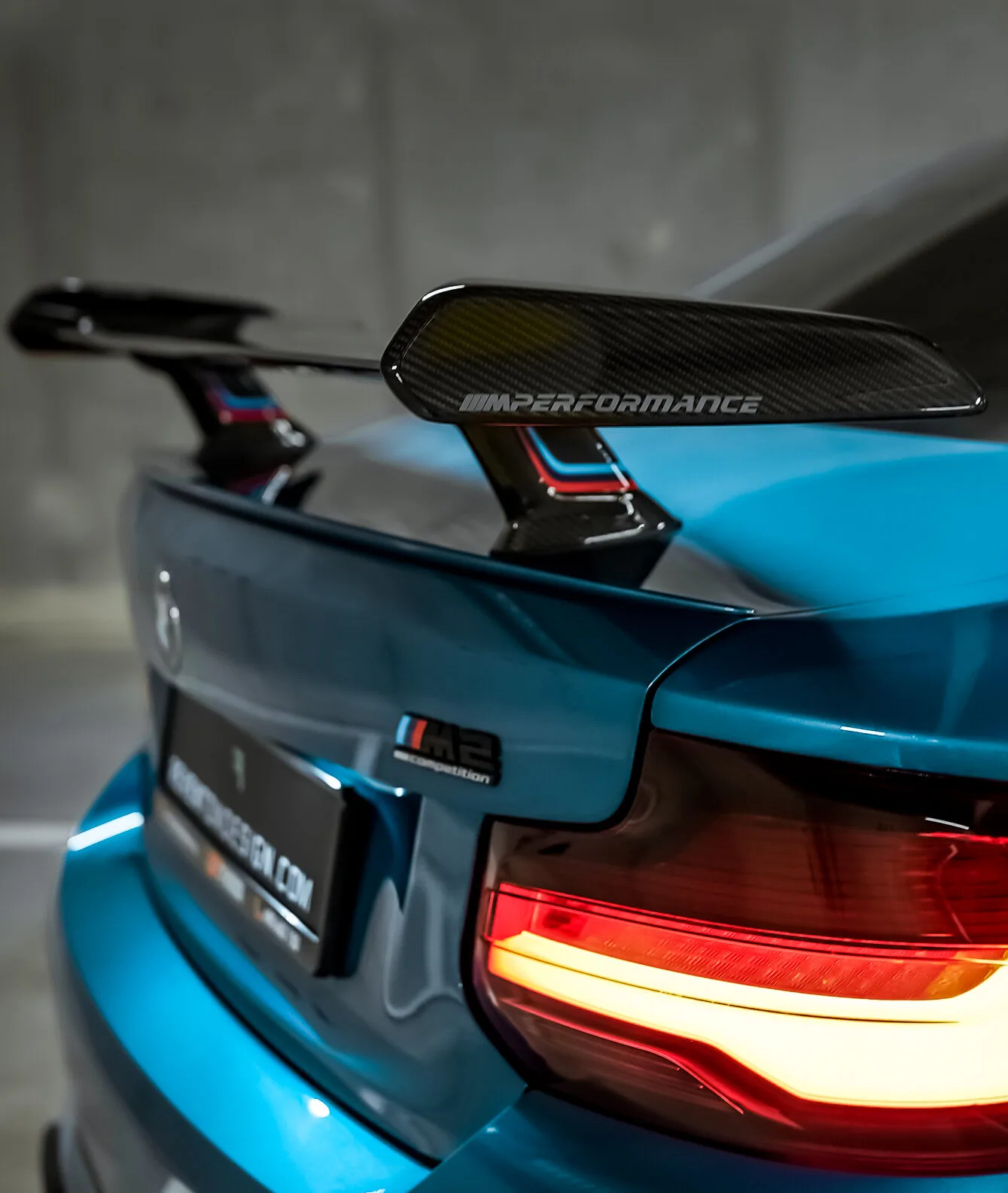

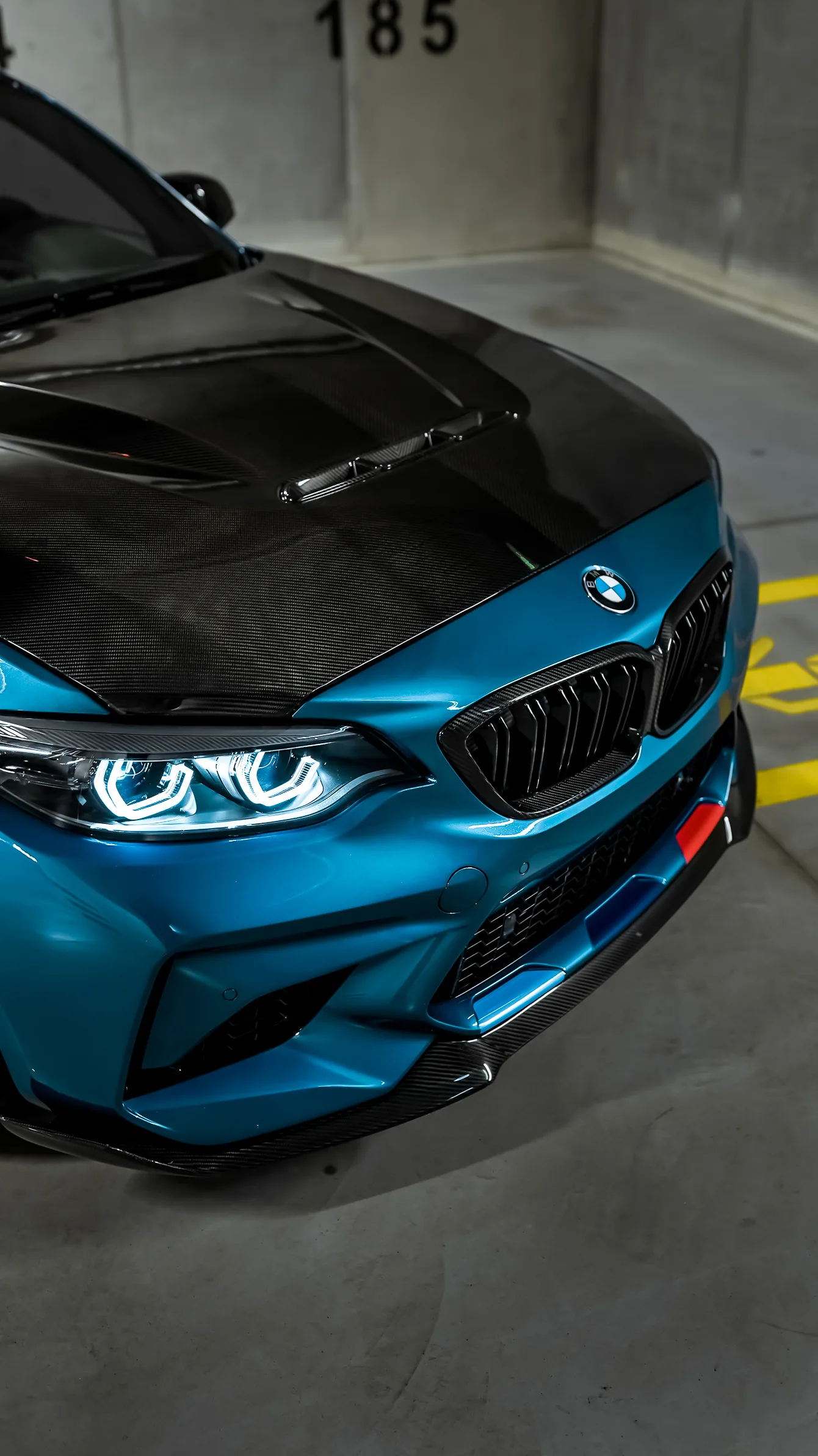

Components are designed for sports and premium cars, for the road as much as the track.
Materials and
trusted suppliers.
Reventon names the German R&G Faserverbundwerkstoffe as its raw material supplier, and NOVOL Spectral as the system for final protection and surface finish.
RAW MATERIALS / GERMANYR&G Faserverbundwerkstoffe GmbH
The raw materials used to make our carbon fibre components come from a trusted German supplier.
FINAL COAT / UV PROTECTIONNOVOL Spectral
The clear finish protects the carbon against UV and brings out the gloss and the fibre structure.
REVENTON INDUSTRIES / MISSIONPrecision.
Precision.
Durability.
Character.
Reventon sets out to develop components that improve both how a car looks and how it behaves aerodynamically, without giving up build quality or durability.
See the collection
